I-Beam Series

Key Features

GVWR: 14K & 17K
AXLES: Dexter 7K & 8K
LOAD CAPACITY: 14K 11,000lbs | 17K 14,000lbs
FINISH: Bigfoot Evercoat Paint System

Starting Price - $5,850

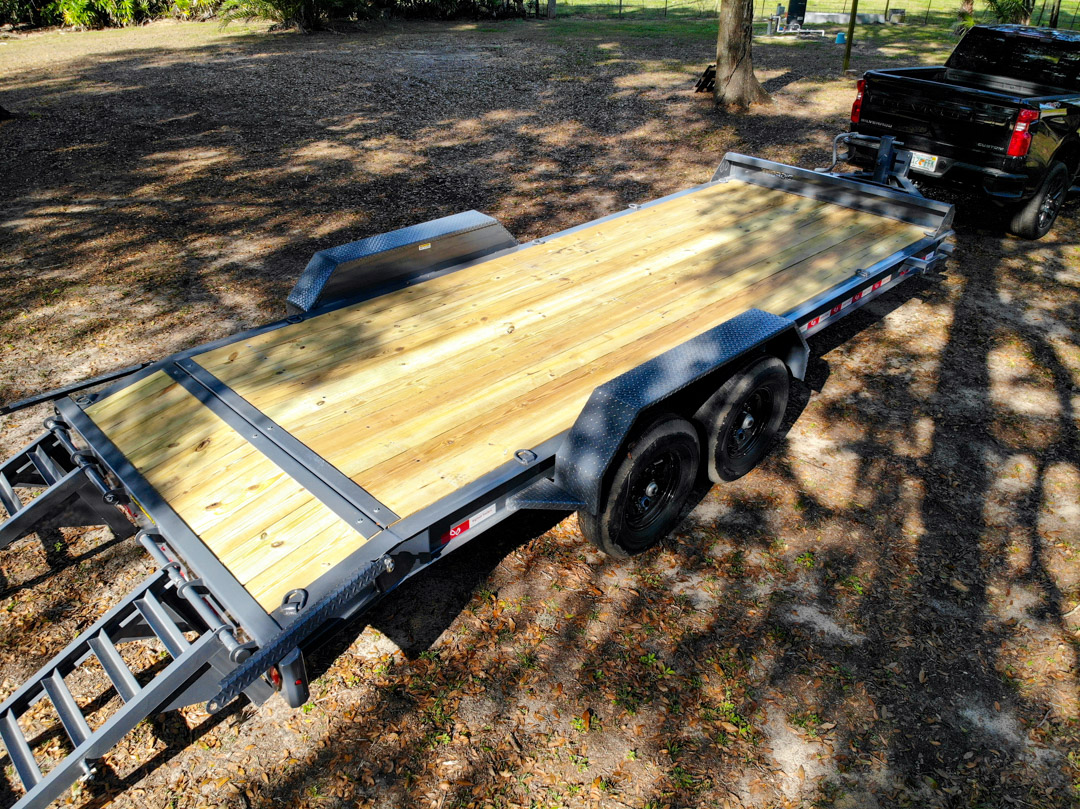

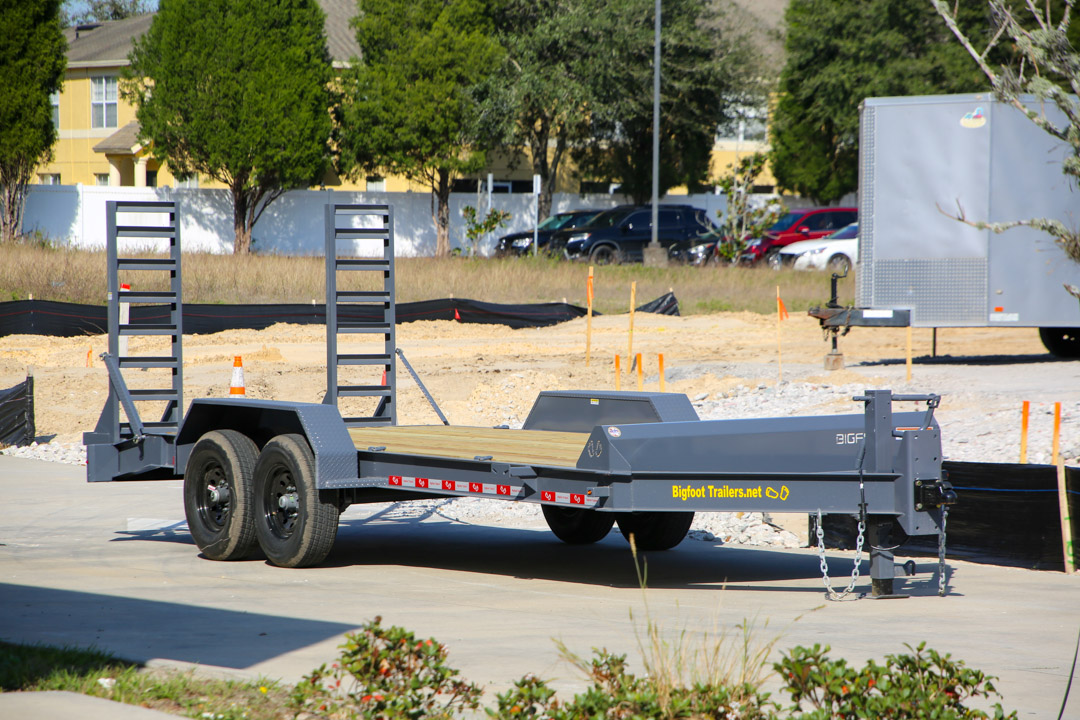

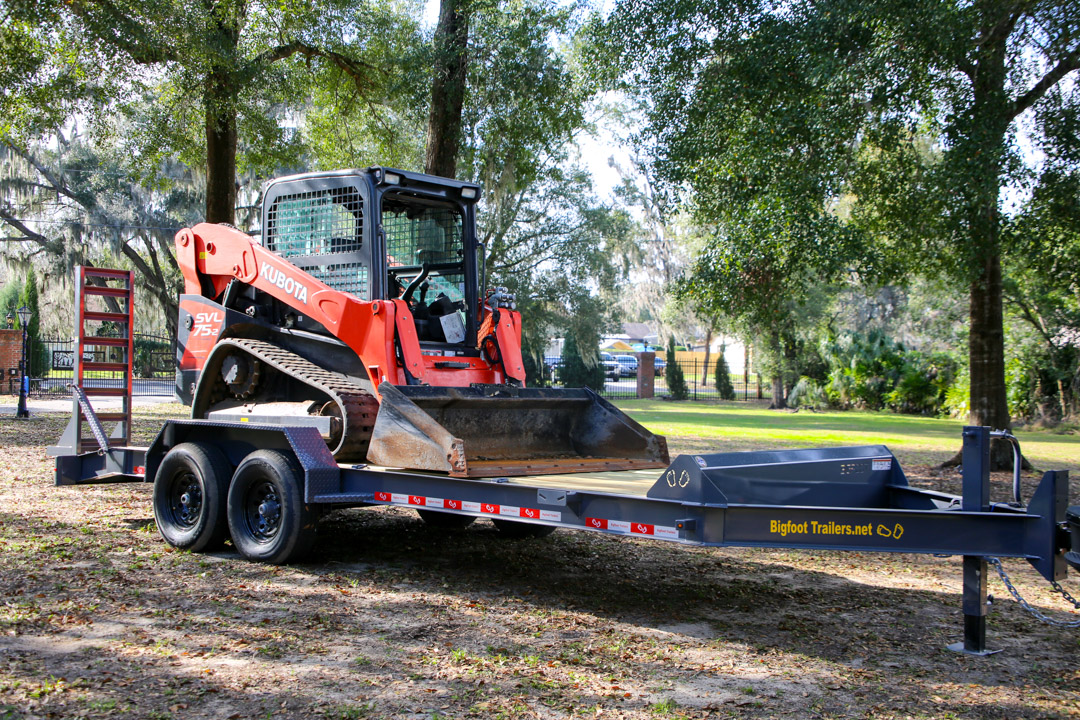

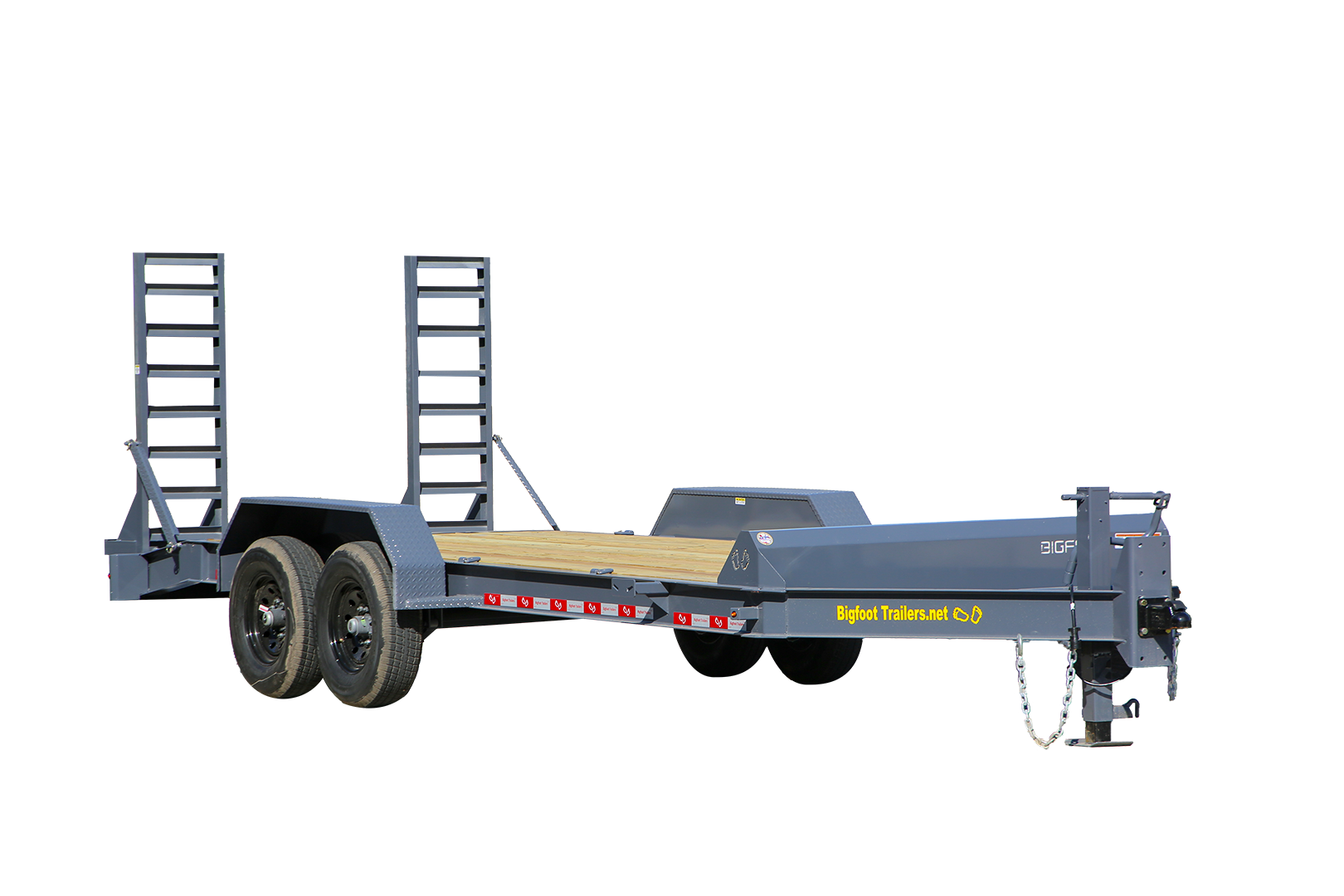

Introducing the new I-Beam Series, with a 14,000 or 17,000 GVWR and capable of a payload of up 14,000 lbs. This trailer is great for transporting almost any vehicle, with lengths available up to 16’ and 24' between fenders. The frame is made from an 8" I-Beam, featuring axles that are Dexter 7k or 8k, and the tires are 14k 10 Ply or 17k 16 Ply Radials. The 68" Flip-up Ramps make loading and unloading a breeze. All LED Plug & Play Harness ensures your lights are always ready to go, while the pressure treated wood deck provide extra security and stability.

Custom built equipment trailers in Mulberry & Jacksonville FL

Full List Of Specs

  • GVWR14K & 17K
  • Load Capacity14K 11,000lbs | 17K 14,000lbs
  • FinishBigfoot Evercoat Paint System
  • AxlesDexter 7K & 8K
  • Frame8" I-Beam Frame
  • Jack12,000 lbs Side Wind
  • Emergency BrakeW Auto Float
    Charging System Upgrade
  • Ramps68' Flip Up Ramps
  • LightsAll LED Plug & Play Harness
  • DeckPressure Treated Wood
  • Tie DownsD Rings & Stake Pockets
  • Lengths16' - 24'
  • Width83" Between
  • Wire HarnessNylon Flex Braid Sys
    Plug & Play
  • Elec Plug7 Pin
  • Tires14K 10 Ply | 17K 16 Ply Radial
  • Hitch TypeAdjustable Coupler
  • Crossmembers3" Channel 16" OC
  • Coupler2 5/16"
  • SuspensionFlipper Spring / Torsion
