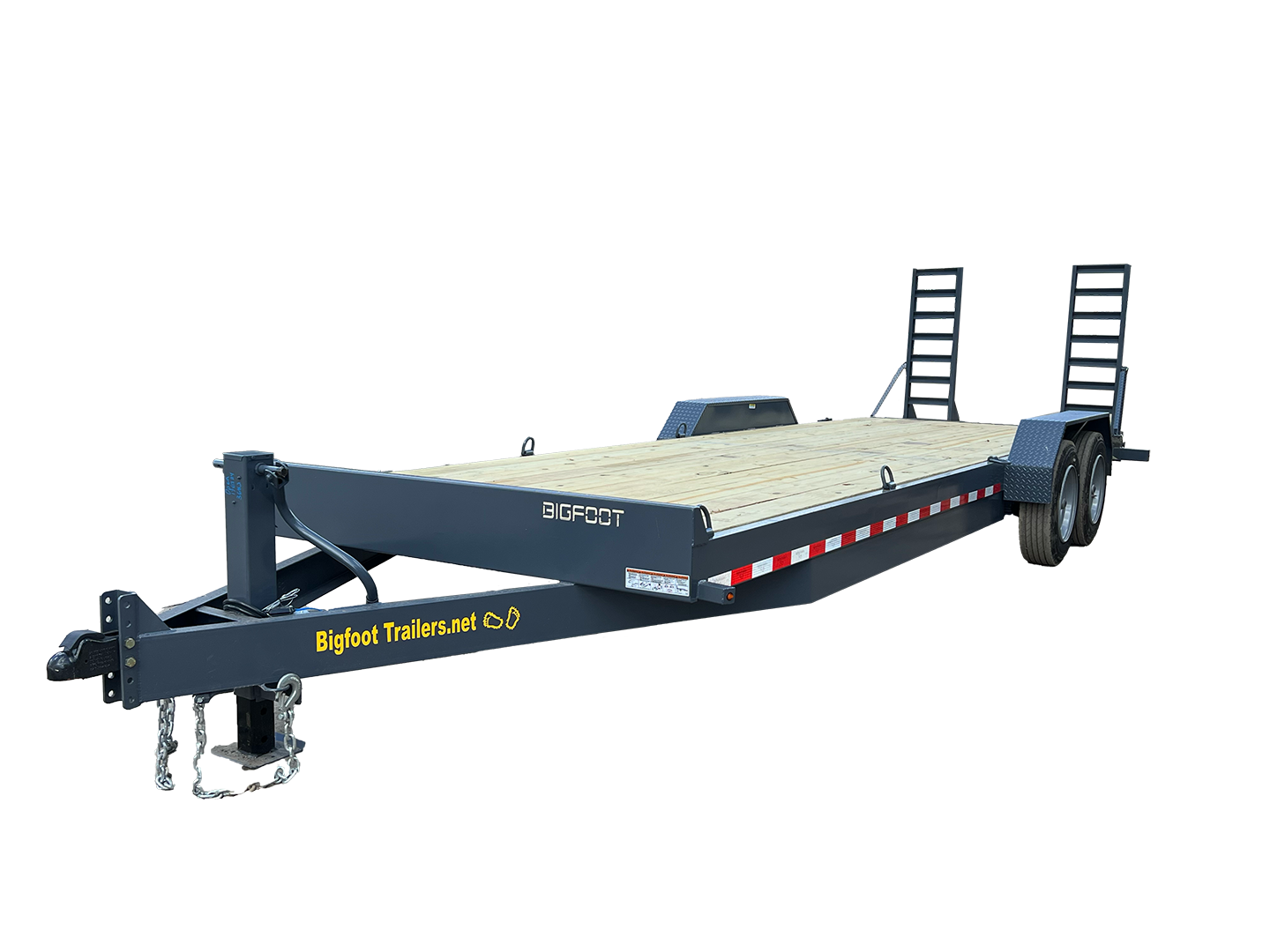

17.5K Equipment Trailer

Key Features

GVWR: 17,500
AXLES: 8k FWD Self Adj Brake
LOAD CAPACITY: Approx. 14,000 lbs
FINISH: Bigfoot Evercoat Paint System

Starting Price - $7,949

This 17.5k GVWR Bumper Pull Equipment Trailer is the perfect solution for your heavy-duty hauling needs. With its 7ft wide 83" between fenders, this trailer offers 16ft up to 30ft of hauling space, and its 7" channel tongue frame runs all the way back to the axles. The 7" deck frame and 2ft dovetail add extra strength, while the 60" HD ramps provide easy loading and unloading. The 16 on center crossmembers, 7 pin whip and LED Plug & Play Lights make this trailer both reliable and efficient, and the 12k RAM spring return jack, 21k Demco adjustable coupler, and 8k grease axles with self-adjusting brakes on all hubs provide maximum stability. With 17.5" rims and 16 ply tires and a high-end paint job, this bumper pull equipment trailer is the perfect solution for your hauling needs.

17K GVWR equipment trailers available in Ashland VA & Mulberry FL

Full List Of Specs

  • GVWR17,500
  • Load CapacityApprox. 14,000 lbs
  • Axles8k FWD Self Adj Brake
  • FinishBigfoot Evercoat Paint System
  • Jack12,000 lbs Spring Loaded Front
  • Frame8" Channel
  • RampsAdjustable 60" Flip Up
  • BrakesPremium Self Adjusting All 4 Wheels
  • Lengths18' 20' 22' 24' 26'
  • SuspensionSlipper Spring
  • Elec Plug7 Pin
  • Hitch Type2 5/16
  • Width83” Between
  • Crossmembers3" Channel 16" On Center
  • Tie Downs8-D-Rings 5/8'' / 10-D-Rings 5/8''
  • Emergency BrakeW Auto Float
    Charging System Upgrade
  • LightsAll LED Plug & Play Harness
  • Safety ChainsTravel 60 Grade
  • Tires16 Ply Radial With Warranty
  • CouplerDemco 21000 lbs
    EZ Latch Adjustable
  • DeckPremium Yellawood
    Pressure Treated Wood
  • Wire HarnessNylon Flex Braid SYS
    Plug & Play
  • Fenders1/8" Plate Steel
